UAV Payload Series Configuration
——Multiple standard and customized payloads to meet the operational needs of different industries
UAV Payload is the core module that empowers drones to perform multi-scenario missions. By integrating optical, infrared, and LiDAR sensors, UAV Payloads deliver 4K ultra-high-definition imaging, 240× hybrid zoom, and laser ranging up to 3000 meters, ensuring precise data even in complex environments.
From disaster response to agricultural monitoring, from security inspection to high-accuracy mapping, UAV Payloads enhance adaptability, reliability, and mission success. With modular design and quick-release functionality, they seamlessly adapt to different tasks, making them the ideal choice for engineering surveys, public safety, and scientific exploration.
Choosing the right UAV Payload not only boosts data collection capabilities but also expands the boundaries of commercial and research applications, driving industries toward smarter and more data-driven transformation.
UAV Compatible Payload Specifications
-
![]()
240x Single Optical Payload (P1-240x) (Visible Light)
8.51 MP visible-light camera
4K high-definition image capture
20× optical zoom
240× hybrid zoom
Resolution: 3840 × 2160
-
![]()

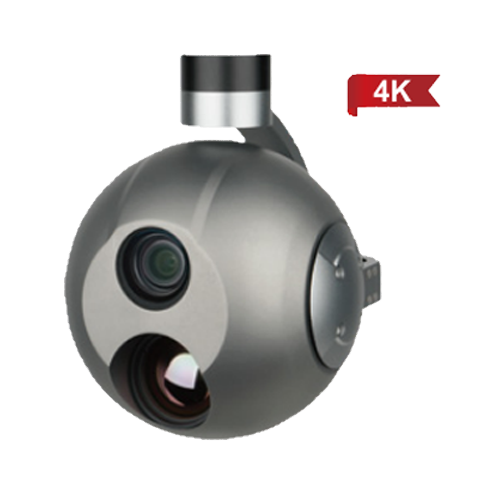

240x Dual Optical Payload (P2-240x) (Visible/Infrared)
8.51 MP visible-light camera
4K high-definition image capture
20× optical zoom
240× hybrid zoom
Resolution: 3840 × 2160
640 × 512 infrared thermal imaging
-
![]()
240x Tri-Sensor Payload (P3-240x) (Visible / Infrared / Laser Ranging)
8.51 MP visible-light camera
4K high-definition image capture
20× optical zoom
240× hybrid zoom
Resolution: 3840 × 2160
640 × 512 infrared thermal imaging
Laser ranging: 50 – 3000 m
Accurate target positioning
-
![]()

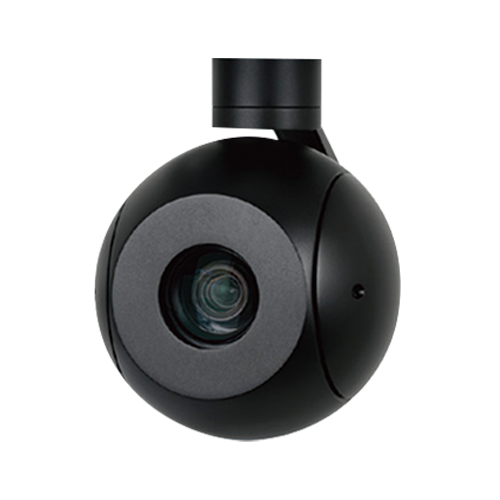

120x Single Optical Payload (P1-120x) (Visible Light)
5.13 MP visible-light camera
10× optical zoom
120× hybrid zoom
-
![]()
120x Dual Optical Payload (P2-120x) (Visible / Infrared)
5.13 MP visible-light camera
10× optical zoom
120× hybrid zoom
640 × 512 infrared thermal imaging
-
![]()
120x Tri-Sensor Payload (P3-120x) (Visible / Infrared / Laser Ranging)
5.13 MP visible-light camera
10× optical zoom
120× hybrid zoom
640 × 512 infrared thermal imaging
Laser ranging: 5 – 1500 m
Accurate target positioning
-
![]()
Full-Frame Nadir Camera (C61-F)
61 MP effective pixels
Focal length: f = 40 mm
Lens aperture: F5.6
Pixel size: 3.76 μm
Sensor size: 36 × 24 mm
-
![]()
Full-Frame oblique cameras (OC225-F)
225 MP effective pixels
Focal length: 40 mm nadir / 56 mm oblique
Sensor size: 36 × 24 mm
Minimum exposure interval: 0.5 s
-
![]()
LiDAR (LR1500)
Maximum measuring range: 1500 m
Point cloud accuracy: 5 cm @150 m; 10 cm @300 m
Ranging accuracy: ±1 cm
Point frequency: 500,000 pts/sec (5 echoes)
UAV Payload Configuration
| Illustration | Electro-Optical Pod | Model | Weight (Quick-Release Version ) | TW 07 Mini | TW 07 Pro | TW 12 | TW 25 | TW 50 | TW 200 | |
|---|---|---|---|---|---|---|---|---|---|---|
| 120x Single Optical Payload (5.13 MP) | P1-120x | 660g | /Customized Version | /Customized Version | |||||
| 240x Single Optical Payload (8.51 MP, 4K high-definition) | P1-240x | 705g | /Customized Version | /Customized Version | |||||
| 120x Dual Optical Payload (5.13 MP, infrared 640 × 512 ) | P2-120x | 730g | /Customized Version | /Customized Version | |||||
| 240x Dual Optical Payload (8.51 MP, infrared 640 × 512) | P2-240x | 950g | - | - | /Customized Version | /Customized Version | |||
| 120x Tri-Sensor Payload (5.13 MP, 640 × 512 infrared, 5–1500 m ranging) | P3-120x | 795g | /Customized Version | /Customized Version | |||||
| 240x Tri-Sensor Payload (8.51 MP, 640 × 512 infrared, 50–3000 m ranging) | P3-240x | 1145g | - | - | /Customized Version | /Customized Version |
| Illustration | Aerial Survey Camera | Model | Weight (Quick-Release Version ) | TW 07 Mini | TW 07 Pro6 | TW 12 | TW 25 | TW 50 | TW 200 | |
|---|---|---|---|---|---|---|---|---|---|---|
| Full-Frame Nadir Camera (61 MP) | C61-F | 345g | - | /Customized Version | /Customized Version | ||||
| Medium-Format Nadir Camera (102 MP) | C102-M | 360g | - | - | /Customized Version | /Customized Version | /Customized Version | /Customized Version | ||
| APS-C Five-Lens Oblique Camera (130 MP) | OC130-H | 1020g | - | /Customized Version | /Customized Version | /Customized Version | ||||
| APS-C Five-Lens Oblique Camera (150 MP) | OC150-H | 1030g | - | - | - | /Customized Version | /Customized Version | ||
| Full-Frame Five-Lens Oblique Camera (225 MP) | OC225-F | 1490g | - | - | - | /Customized Version | /Customized Version | ||

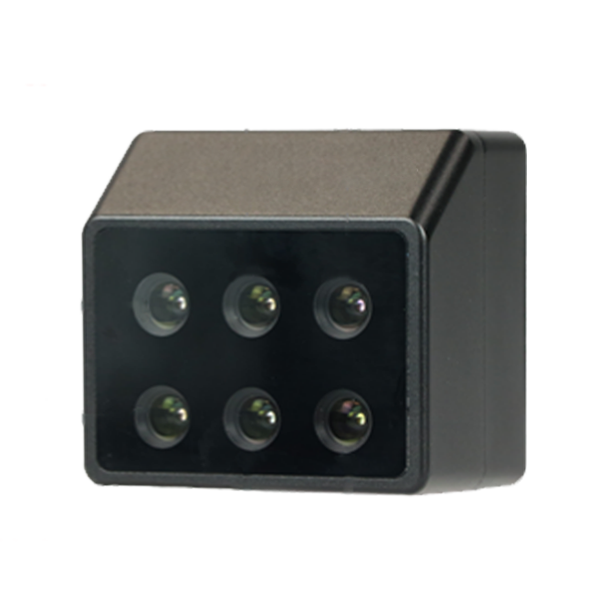

| Multispectral Camera MS600 (8.65cm@h120m) | MS600 | 280g | - | - | /Customized Version | /Customized Version | /Customized Version | ||
| Multispectral Camera AQ600 (5.28cm@h120m) | AQ600 | 415g | - | - | /Customized Version | /Customized Version | /Customized Version |
| Illustration | Additional Payload Other Modules | Model | Weight (Quick-Release Version ) | TW 07 Mini | TW 07 Pro | TW 12 | TW 25 | TW 50 | TW 200 | |
|---|---|---|---|---|---|---|---|---|---|---|
| High-Precision LiDAR (1500m ranging) | LR1500 | 2500g | - | - | - | /Customized Version | /Customized Version | ||
| 32-Channel LiDAR (300m ranging) | LR260X | 1100g | - | - | /Customized Version | /Customized Version | /Customized Version | ||

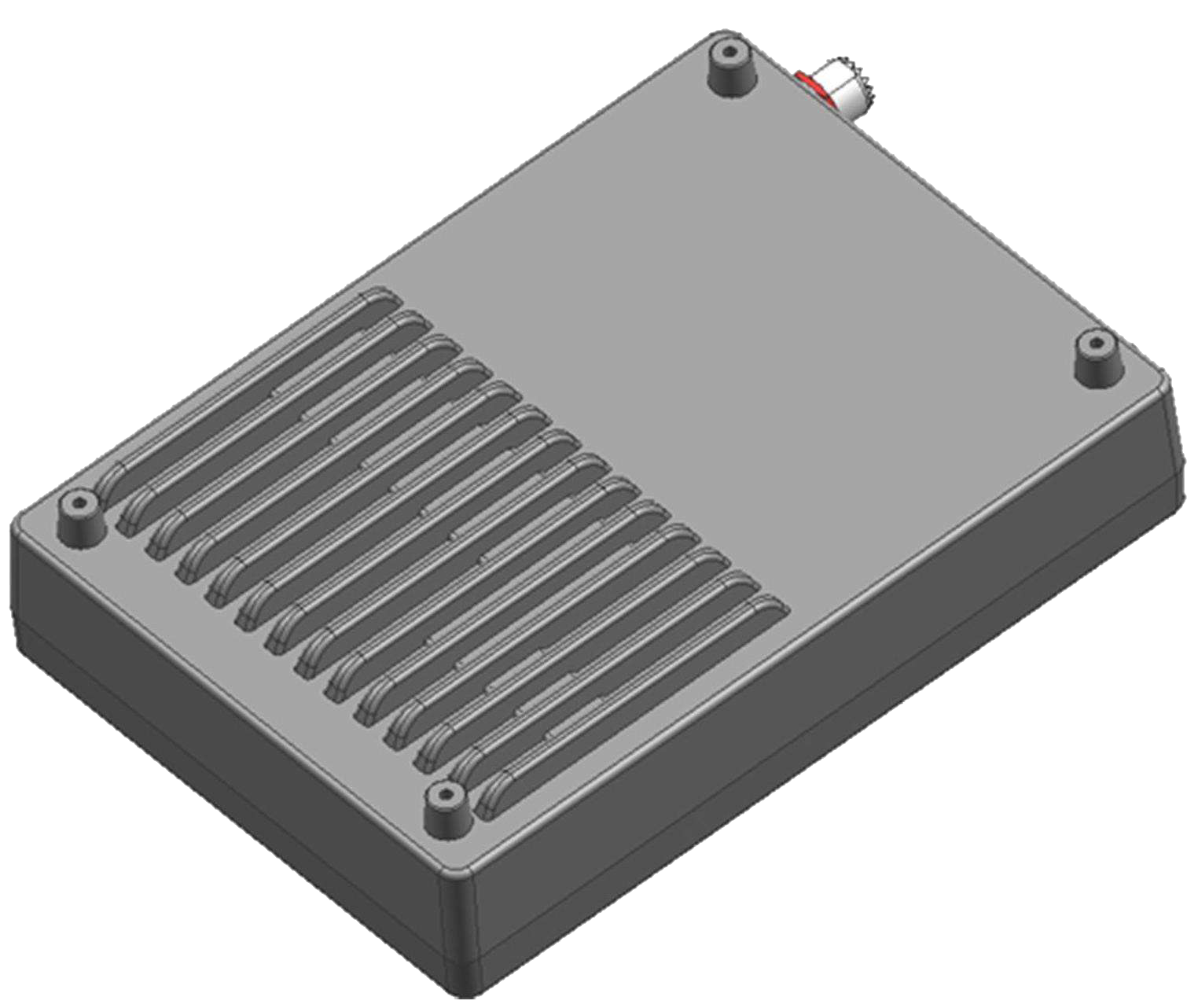

| Mobile Emergency Communication Relay | 2000g | - | - | /Customized Version | /Customized Version | /Customized Version | |||
| Illumination Indicator Light | 220g | - | - | /Customized Version | /Customized Version | /Customized Version | |||

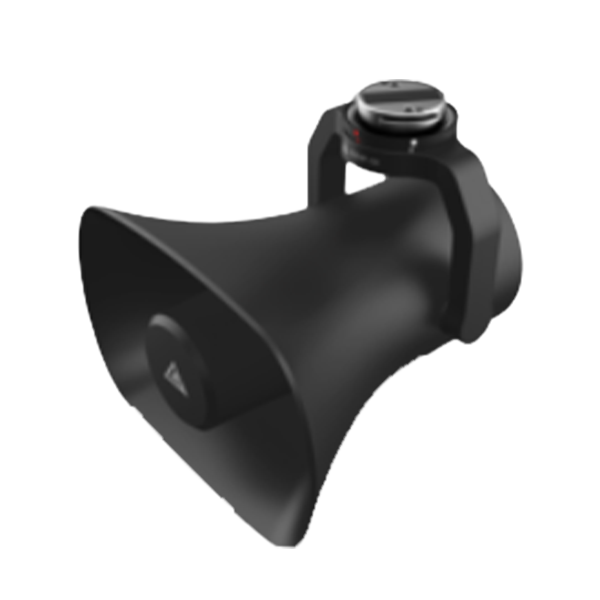

| Voice Broadcast Module | 570g | - | - | /Customized Version | /Customized Version | /Customized Version |
Competitive Advantages
-
● Dual-Wing Aerodynamic Layout – optimized flight stability through advanced airframe design
● Full-Vector Control – precise maneuverability and stability under dynamic conditions
● Adaptive Wind-Resistance Response – enhanced stability in turbulent airflow
● Proven Reliability – validated with over one million flight hours
● GNSS Anomaly Handling – robust navigation safety features
• Automatic Return-to-Home (RTH) upon signal loss
• Low-battery warning and autonomous RTH
-
● Vertical Takeoff and Landing (VTOL) – eliminating runway dependence
● Lightweight & Portable – designed for field deployment and backpack transport
● One-Touch Takeoff – simplified mission initiation
● Autonomous Cruise – intelligent route execution
● Quick Assembly & Disassembly – optimized for fast deployment
• Rapid battery replacement
• Fast system self-check
-
● Up to 2× Flight Endurance – compared to VTOL hybrid fixed-wing UAVs with the same payload capacity
● Up to 2× Payload Capacity – compared to VTOL hybrid UAVs with the same wingspan
● Reduced Ground Footprint – only 1/4–1/5 of conventional VTOL hybrid UAVs with the same wingspan
