Ground Control Station

—— for VTOL UAV

  • Ground Control Station Software (GCS Software)

Fast Response, Effortless Flight

Integrated Dual-Screen Ground Control Station
Portable Large-Screen Ground Station
Backpack Portable Base Station

Changguang Boxiang has independently developed a ground control station flight management software tailored for multi-industry applications.

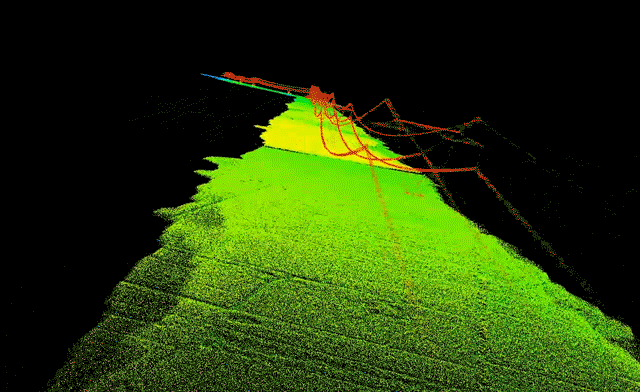

It supports easy flight route planning, one-click takeoff, and autonomous cruising. During the flight, the system displays real-time data including altitude, wind speed, battery level, signal strength, mission map, and live video transmission. Featuring an intuitive human–machine interface, the software is simple to operate and user-friendly.

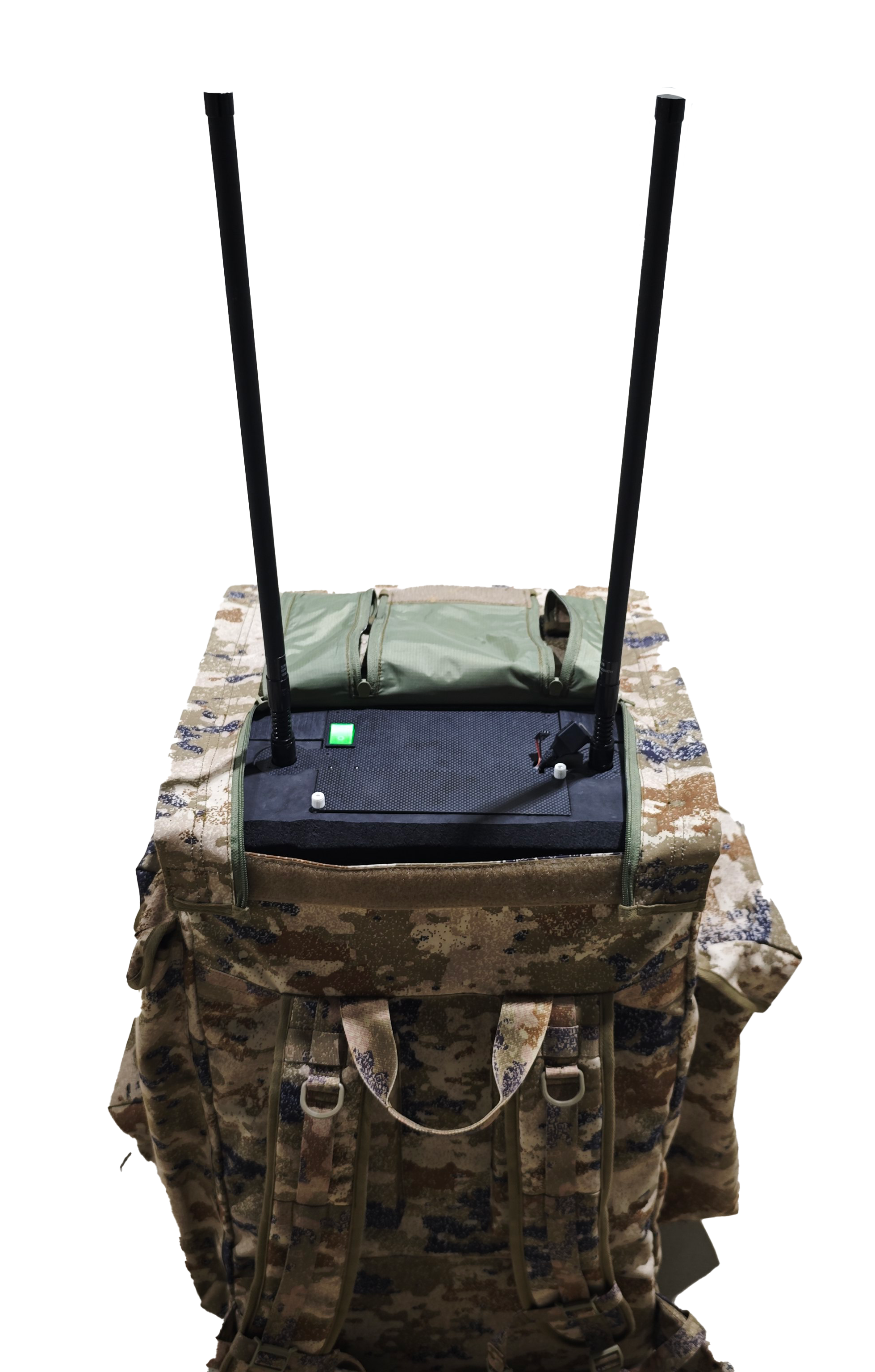

In addition, a customizable backpack ground base station is available, which can be equipped with various ground control stations, including laptop computers, providing flexible deployment options for diverse operational needs.

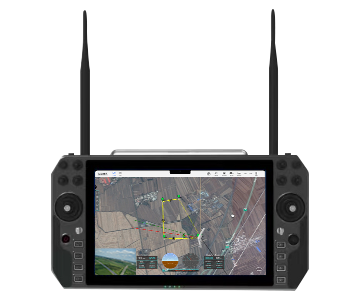

  • Portable Large-Screen Ground Station

Sunlight-Readable / Lightweight Design

Specification Details
Image Transmission30 km
Screen10.1-inch Capacitive Touchscreen
Resolution1280×800, 1000 NIT Brightness
Battery Life4 hours (Full charge at room temperature)
Storage4G + 256G (32G + 256G expandable)
Weight1.9 Kg
Dimensions335 × 185 × 78 mm
MaterialAluminum Alloy (Full Body)
Specification Details
Image Transmission50 km
Screen13.3-inch Capacitive Touchscreen ×2
Resolution1920×1080, 1000 NIT Brightness
Battery Life4 hours (Full charge at room temperature)
Storage8G + 512G (32G + 512G expandable)
Weight8.15 Kg
Dimensions429 × 290 × 88.6 mm (with protective frame)
MaterialAluminum Alloy (Full Body)

  • Integrated Dual-Screen Ground Control Station

Highly Integrated / More Professional
